SPECIFICATIONS

Brand Name: ElecDemo

High-concerned chemical: None

Origin: Mainland China

Power supply voltage: Maximum ±18V

Size: 50mm*50mm

Type: Other PLC Peripheral Modules

Highlights：

Layout is regular, strictly according to the filter circuit design to layout and wiring, generous materials, can complete various filtering functions, easy to use, suitable for student competition module and personal project development.

UAF42 module shipping list

Module + PDF schematic + after-sale technical support + electrostatic bag packaging + shockproof foam

Tips:



(1) The module interface of our shop is clear and the performance is stable. Please perform functional verification under the corresponding experimental conditions in conjunction with the schematic diagram provided by our shop.



(2) The basic parameters of this module are in the details page, providing PDF information of the module information; engineering documents are not provided, please be clear to the buyer, if you have operational problems, you can consult customer service.



(3) Buyers, before using the module, please read the details page of this module to understand the power supply and use restrictions, to avoid damage to the module due to improper operation.



(4) Our modules are guaranteed to provide real module parameters, functions and pictures, and all modules will be shipped after detection.







Module parameters

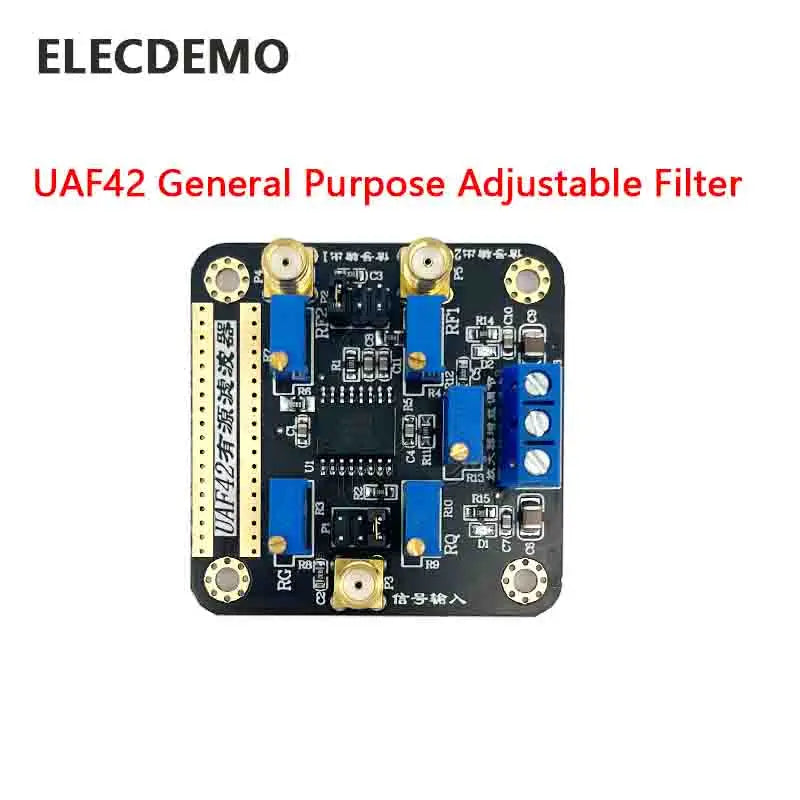

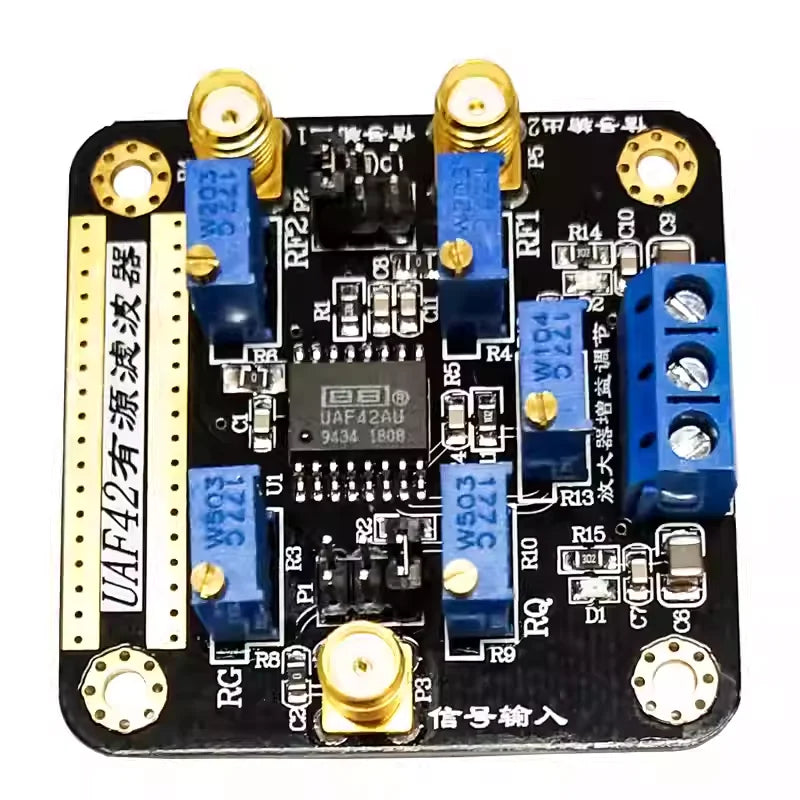

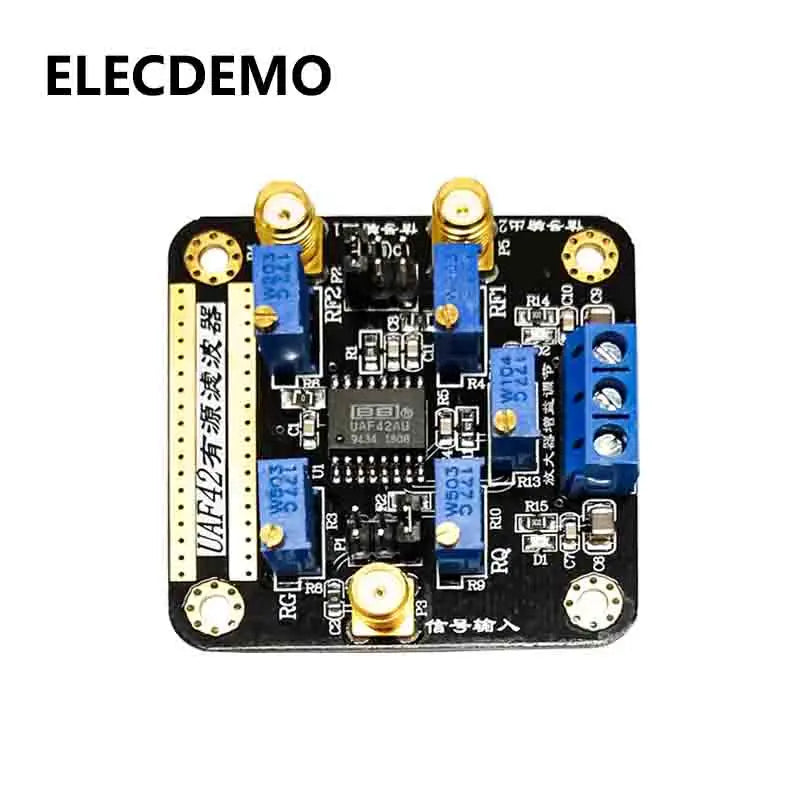

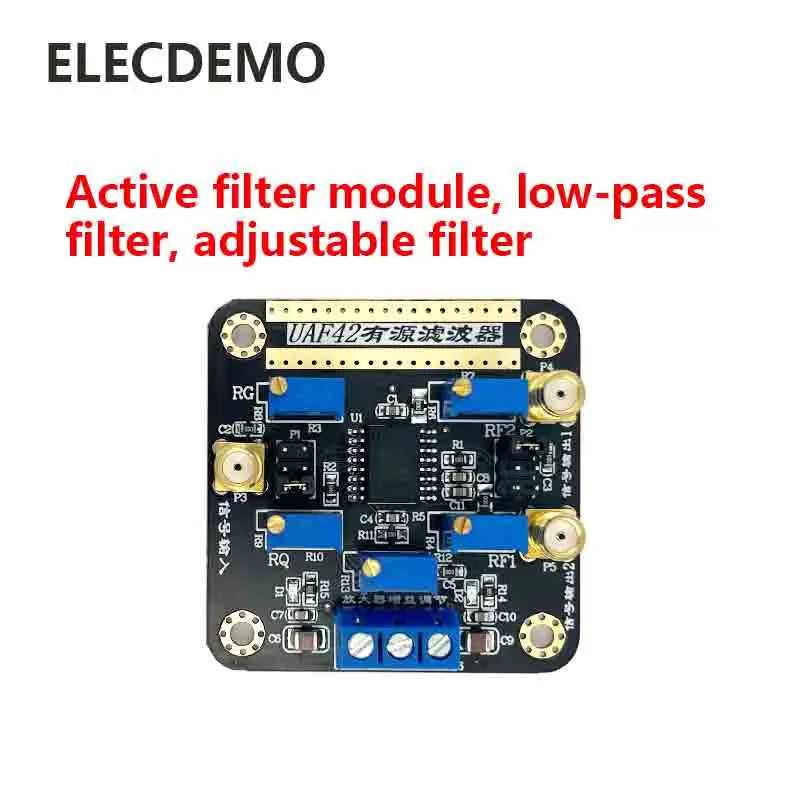

Module model: UAF42

Module type: universal adjustable filter

Supply voltage: ±5V-±15V

Module current: 10mA (Max)

Module control mode: potentiometer

Filter type: high-pass, low-pass, band-pass; the center frequency can be customized according to customer requirements

Low-pass cut-off frequency range: 100KHz (MAX); the default potentiometer cut-off frequency range is within 5K; the maximum cut-off frequency is not supported, users need to replace the RF1 and RF2 potentiometers according to their own needs

Qualcomm cut-off frequency range: 30KHz (MAX); the default potentiometer cut-off frequency range is within 2K; the maximum cut-off frequency is not supported, users need to replace RF1 and RF2 potentiometers according to their own needs

Bandpass center frequency range: 50Hz-40KHz; the default potentiometer cut-off frequency range is within 500Hz-5KHZ; the minimum and maximum center frequencies are not supported, users need to replace the RF1 and RF2 potentiometers according to their own needs

Input signal form: single-ended; default VIN2 input

Input signal voltage range: less than positive and negative power supply

Input frequency range: DC-1MHz

Module gain range: 40dB (MAX)

Quality factor Q value adjustable range: 20 (MAX)

Input and output signal characteristics: DC input and output; output with DC component, please add DC blocker to the radio frequency equipment, or directly use oscilloscope

Module input and output interface: SMA; 24-hour salt spray anti-oxidation

Module protection: none; no reverse connection protection, unlimited current protection

Customized parameters: yes

Module features: multi-function filter, universal adjustable filter

Module application: power system, sensor signal processing, transmitter and receiver, signal generator

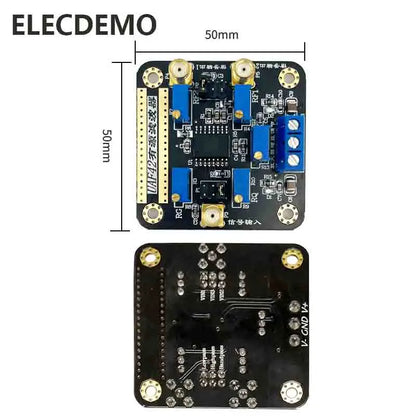

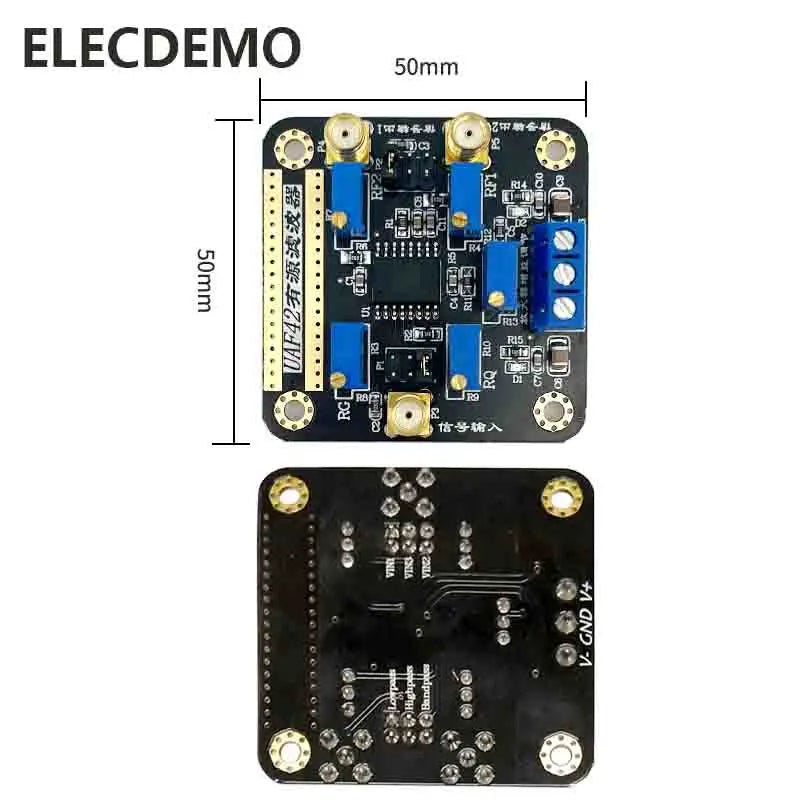

Module specifications: 50*50*15mm; length*width*height-PCB size

Module weight: 20.6g

Module working temperature: 0-75℃; civil grade







Module description





UAF42 is a universal active filter that can be configured for various low-pass, high-pass, and band-pass filters. It uses a classic state-variable analog architecture with an inverting amplifier and two integrators. The integrator includes an on-chip 1000pF capacitor trimmed to 0.5%. Many filter types can be easily implemented, such as Butterworth, Bessel and Chebyshev. A fourth useless FET input operational amplifier (same as the other three) can be used to form additional stages, or for special filters such as band stop and inverse Chebyshev. Generally used in power system, sensor signal processing, transmitter and receiver, signal generator processing, etc.







Precautions for using the module









(1) The power supply of the module is a positive and negative dual power supply, and the voltage cannot exceed 18V.

(2) Since the module is a high-precision device, in order to avoid unnecessary interference, it is recommended to use a linear power supply.

(3) It is recommended to use SMA to BNC line input and output signals for output signals. Use an oscilloscope to observe the effect. Poor contact or poor quality wires may cause signal attenuation or excessive noise.

(4) The filter measurement generally adopts the oscilloscope point frequency method. If possible, you can use a frequency sweeper or a vector network analyzer to test. Please add a DC blocker.

(5) The details in the shop are mainly the introduction of the basic performance of the module and the test chart. If you need the specific working principle and analysis of the circuit, please move to the blog post.

blog.csdn.net/kvdz_taobao_com/article/details/103511208









Frequently asked questions





Q: There is no problem when the module starts to output. After adjusting the potentiometer, even if there is no input signal, there will be an output signal. What is going on?



A: In this case, it should be over-adjusted, the module is self-excited; you need to turn RF1 and RF2 clockwise a few more times at the same time, RQ potentiometer can be turned counterclockwise a few times; the center frequency and Q value are reduced, the module You will not be self-excited.



Q: Can UAF42 adjust the bandpass from 20HZ to 20KHz?



A: No, UAF42 can only be adjusted to a narrow-band filter, for example, 1K center frequency 100hz bandwidth. If a broadband filter is needed, our custom fourth-order filter can do it.



Q: The input signal of the module is 1Vpp, the output signal becomes larger, and how to adjust the unevenness in the band?



A: If you don't need to amplify, you can use channel 1 output. The gain can be controlled by RG potentiometer. The unevenness in the band is generally too high Q value. Adjust the Q value counterclockwise to reduce the in-band fluctuations.
